DAB radio DX events in Telford, UK

5A - 174.928 MHz to 13F - 239.200 MHz

  • Finding DAB DX

    If you have a Software Defined Radio (SDR) and that has more than a couple of MHz of visible spectrum you can look for DAB DX signals in the waterfall display. The DAB DX will be visible in the waterfall display long before the actual DAB channel list decodes.

    It's also much more convenient to monitor the changing radio conditions via this method than constantly re-scanning the DAB / DAB+ radio band. Note: A single DAB multiplex bandwidth is ~1.5MHz

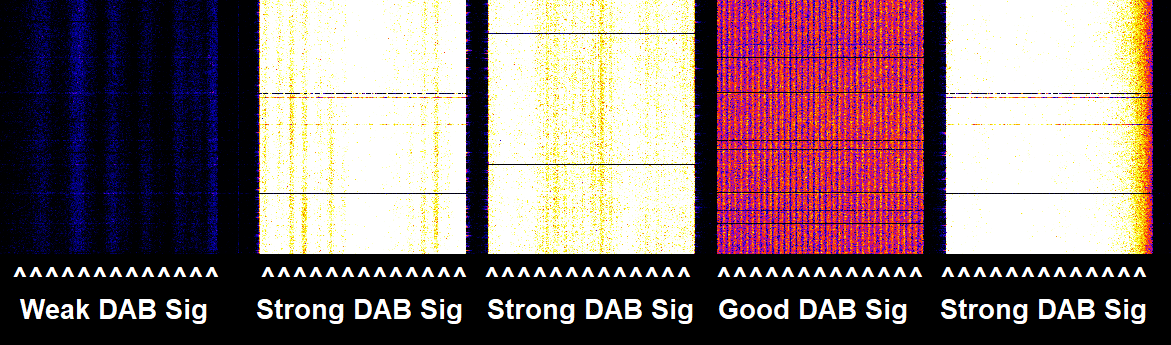

    Finding DAB DX signals in a SDR waterfall

  • DAB Spectrum View

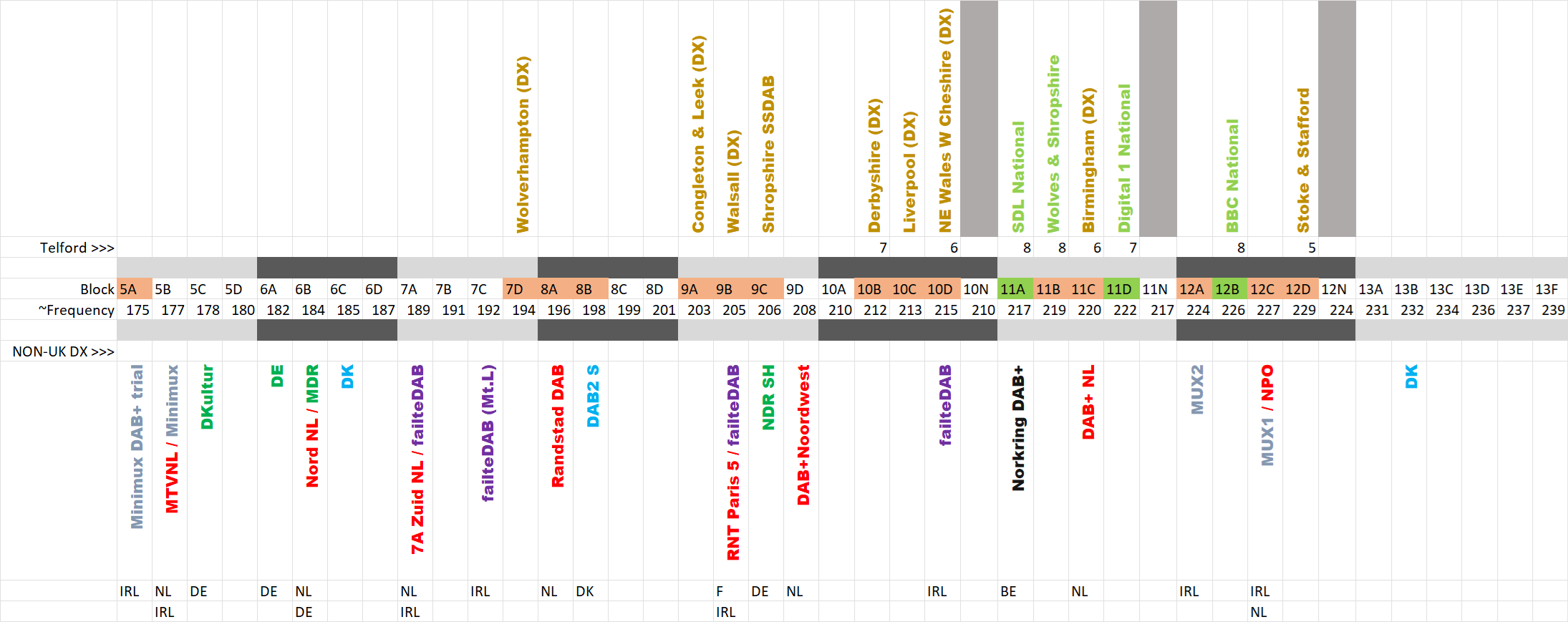

    The following is a spectrum wide view of the locally (Telford) receivable DAB multiplexes and those that might be possible to receive during enhanced (tropospheric) radio conditions.

    telford dab dx crib sheet

  • DAB Propagation Events:

    The following lists the DX DAB radio stations I have received in Telford

    Date Time DAB Block Multiplex Country Prop Mode Audio Quality
    10-10-2023 07:30 5A DAB+ VLAANDEREN2 (assumed) BelgiumTropo No Decode, Visible in Waterfall Only
    10-10-2023 07:30 5B ? ?Tropo No Decode, Visiable in Waterfall Only
    10-10-2023 07:30 5D DAB+ VLAANDEREN2 (assumed) BelgiumTropo No Decode, Visible in Waterfall Only
    10-10-2023 07:30 6B 6B Oost-Noord NL (assumed) HollandTropo No Decode, Visible in Waterfall Only
    10-10-2023 07:30 6D BXL-BW 2 BelgiumTropo Decoded on Portable
    10-10-2023 07:30 8D Liege 1 (assumed) BelgiumTropoNo Decode, Visible in Waterfall Only
    10-10-2023 07:30 9B ? ?UKTropoNo Decode, Visible in Waterfall Only
    2021 2021 2021 2021 2021 2021 2021
    30-05-2021 23:45 8B DAB2 S DenmarkTropo No Audio
    2019 2019 2019 2019 2019 2019 2019
    30-12-2019 07:30 5A DAB+ VLAANDEREN2 BelgiumTropo Perfect Audio (and portable)
    30-12-2019 09:30 5C DR Deutschland GermanyTropo
    30-12-2019 07:30 5D DAB+ VLAANDEREN2 BelgiumTropo Perfect Audio
    30-12-2019 09:30 6B 6B Oost-Noord NL HollandTropo Good Audio
    30-12-2019 09:50 6D BXL-BW 2 BelgiumTropo Good Audio
    30-12-2019 07:30 7A 7A Zuid NL BelgiumTropo Bubble
    30-12-2019 07:30 8A LILLE Etendu FranceTropo (and portable)
    30-12-2019 07:30 7D ??? Tropo

    30-12-2019 07:30 8D Liege 1 BelgiumTropo Perfect Audio
    30-12-2019 07:30 9D Zuidwest NL HollandTropo Perfect Audio (and portable)
    30-12-2019 07:30 10A NDR NDS GermanyTropo Perfect Audio
    30-12-2019 09:00 12A DAB+ VRT BelgiumTropo Perfect Audio

    30-12-2019 06:44 10C Hert Beds Bucks EnglandTropoBubble

    29-12-2019 07:30 9D Zuidwest NL HollandTropo Perfect Audio
    28-12-2019 23:09 8D Liege 1 BelgiumTropo No Audio

    25-07-2019 22:00 9D Zuidwest NL HollandTropo

    28-06-2019 22:00 9D 9D Noord-West NL HollandTropo
    28-06-2019 22:00 9D Zuidwest NL HollandTropo
    28-06-2019 22:00 9D Humberside EnglandTropo

    27-06-2019 22:30 8D Liege 1 BelgiumTropo
    27-06-2019 07:30 8D Liege 1 BelgiumTropo
    27-06-2019 07:30 9A MDR SACHEN GermanyTropo
    27-06-2019 07:30 9D Zuidwest NL HollandTropo

    14-02-2019 12:00 9D Noord-West NL HollandTropo
    14-02-2019 07:30 9D Zuidwest NL HollandTropo
    14-02-2019 07:30 10A NDR NDS GermanyTropo
    2018 2018 2018 2018 2018 2018 2018
    18-11-2018 09:00 9D 9D Noord-West NL HollandTropo
    24-10-2018 06:44 10C Yorkshire EnglandTropo
    21-10-2018 09:00 9D 9D Zuidwest NL HollandTropo
    21-10-2018 09:00 10C 10C Suffolk EnglandTropo
    30-06-2018 01:29 8A 8A Randstad NL HollandTropo
    29-06-2018 23:03 9D Zuidwest NL HollandTropo Perfect
    29-06-2018 07:34 12C NPO HollandTropo Brocken
    29-06-2018 07:20 12A Lincolnshire EnglandTropo Perfect
    29-06-2018 07:20 10A NDR NDS GermanyTropo Perfect
    29-06-2018 07:20 9D 9D Noord-West NL HollandTropo Perfect
    29-06-2018 07:30 12A Lincolnshire EnglandTropo
    29-06-2018 07:30 12A Lincolnshire EnglandTropo
    2016 2016 2016 2016 2016 2016 2016
    31-10-2016 07:30 12A Lincolnshire EnglandTropo No audio
    30-10-2016 17:39 10D Humberside - High Hunsley EnglandTropo Bubble
    23-08-2016 07:30 12A Lincolnshire EnglandTropo Perfect also received on Portable radio!
    17-07-2016 22:55 10C North Yorkshire EnglandTropo none
    09-06-2016 22:55 10C Liverpool EnglandTropo Squeaky
    09-06-2016 06:35 10D Herts Beds Bucks EnglandTropo Perfect
    06-06-2016 23:55 8A Randstad NL HollandTropo Perfect
    06-06-2016 23:42 9D Zuidwest NL HollandTropo Perfect
    20-04-2016 07:42 10C Northamptonshire England Tropo Bubble
    20-04-2016 07:42 12C Nottinghamshire EnglandTropo Bubble
    19-03-2016 21:42 10C Northamptonshire EnglandTropo Bubble
